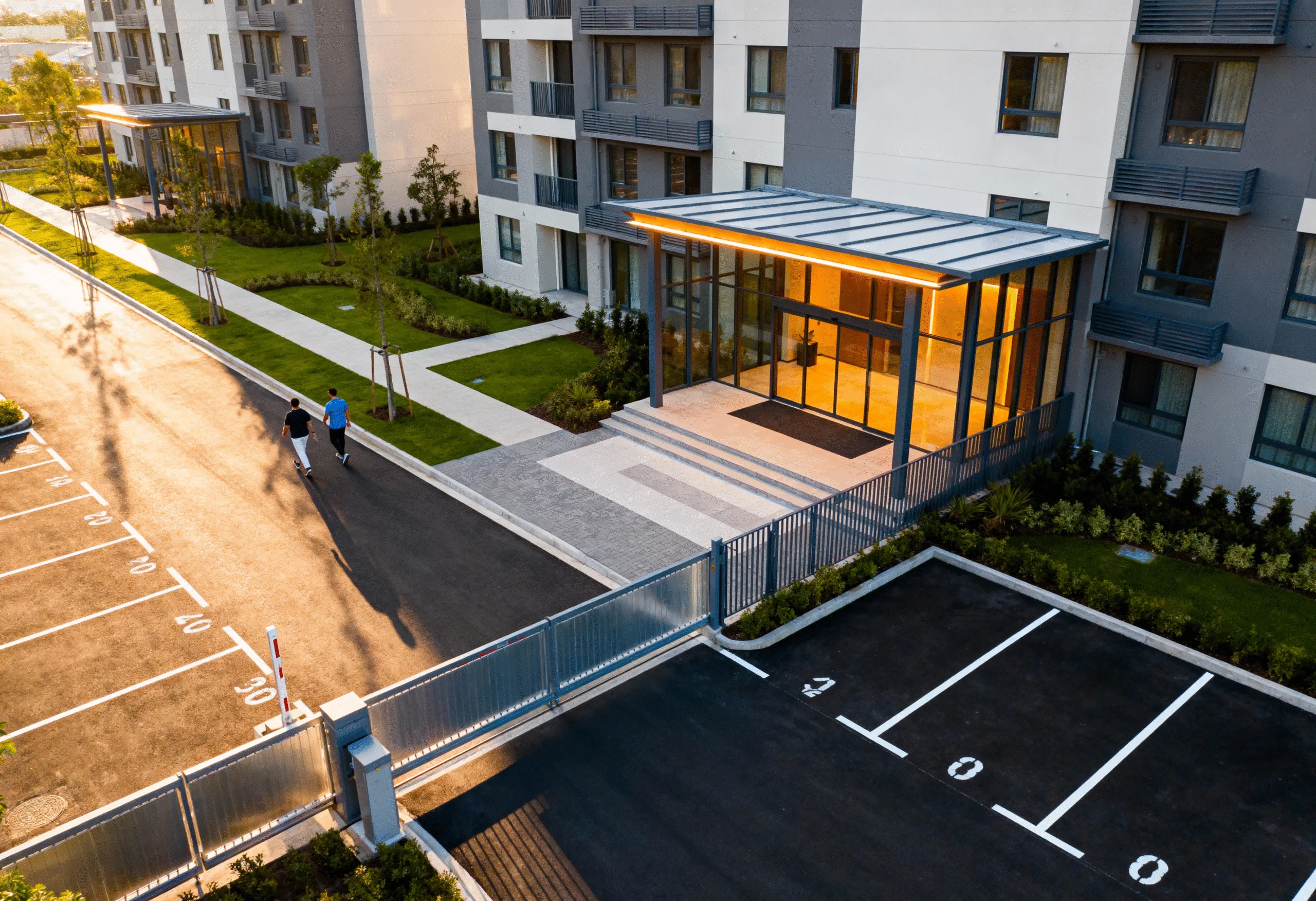

Personal & Residential Spaces
Experience intelligent living — Triggo lights up intimate spaces with graceful, near-range proximity sensing.
Triggo distance measurement primarily relies on calculating the time it takes for a signal to travel to a target and back between two asynchronous transceivers or reflective surfaces.Traditional ultrasonic distance Measurement systems often struggle to accurately detect small or irregularly shaped objects, such as wires or cones, due to their heavy reliance on the target’s reflective properties. Triggo overcomes these limitations completely. In addition, it offers high accuracy, a long measurement range, and fast response times.
Voltage |
110-240V/AC |
Ambient Light |
<3-2000LUX (adjustable) |
Detection Angle |
15° |
Working Temperature |
-20~+50C |
Installation Height |
0.2-1.5m |
Rated Load |
Max.2000W(220-240V/AC)
1000W(110-130V/AC)
1000W(220-240V/AC)
500W(110-130V/AC) |
Power Frequency |
50/60Hz |
Time Delay |
Min.5sec±3sec , Max.15min±2min |
Detection Distance |
0.1-3m |
Working Humidity |
<93%RH |
Power Consumption |
Approx. 0.6W |
Adjust the sensor’s detection range from 0.1 m to 3 m using the SENS knob. Turn it fully left for the minimum range and fully right for the maximum range. Set the distance according to the installation area — shorter for compact spaces, longer for wider zones.
Select how long the connected light remains ON after no motion is detected — from 5 seconds to 15 minutes. Any new movement restarts the timer automatically. Use the shortest time during setup and walk testing for more accurate calibration.
Set the sensor’s light sensitivity from 3 to 2000 lux. Turning the knob fully left enables night-only mode (≈ 3 lux), while fully right allows day + night operation (≈ 2000 lux). Keep it fully right during testing in daylight, then adjust as required for your application.
Join hundreds of professionals embracing India’s first Proximity Presence Sensor — TRIGGO.
Discover the simple yet effective way Triggo transforms your space
Emits 5.8GHz microwaves with <0.2mW power, ensuring precise detection.
Detects movement (0.6–1.5m/s) within 360° range, adjustable 2–16m.
Activates lights (≤800W incandescent / 300W LED) with 10s–12min delay.
A microwave motion sensor works by emitting high-frequency waves and detecting changes in the reflected signal. When motion occurs within the microwave sensor range, the reflection shifts, triggering a response. Unlike passive sensors, microwave sensors actively scan their surroundings, making them ideal for detecting subtle movement, even through walls or glass.
India’s first sensor offering ultra-precise detection for the smallest movements with laser accuracy.
India’s first presence sensor—detects movement in milliseconds with 3 m accuracy.
Customizable sensitivity from 0.1 m to 3 m for precise control in any application.
Day/Night mode adjustment (3 – 2000 LUX) for perfect operation under any light condition.
Lights turn ON only when required, saving energy automatically.Time Delay Control -
Adjustable delay time ensures lights stay ON only as long as needed.
Up to 2000 W support
Works -20 °C to +50 °C
Instant motion activation
Discover how the TRIGGO Proximity Presence Sensor redefines precision lighting control with advanced Time-of-Flight technology for unmatched accuracy and efficiency.
Experience intelligent living — Triggo lights up intimate spaces with graceful, near-range proximity sensing.
Smart lighting in common areas of residential & commercial towers improves energy savings and safety with automated control.
Automated lighting in patient corridors and service zones supports hygiene protocols and operational efficiency.

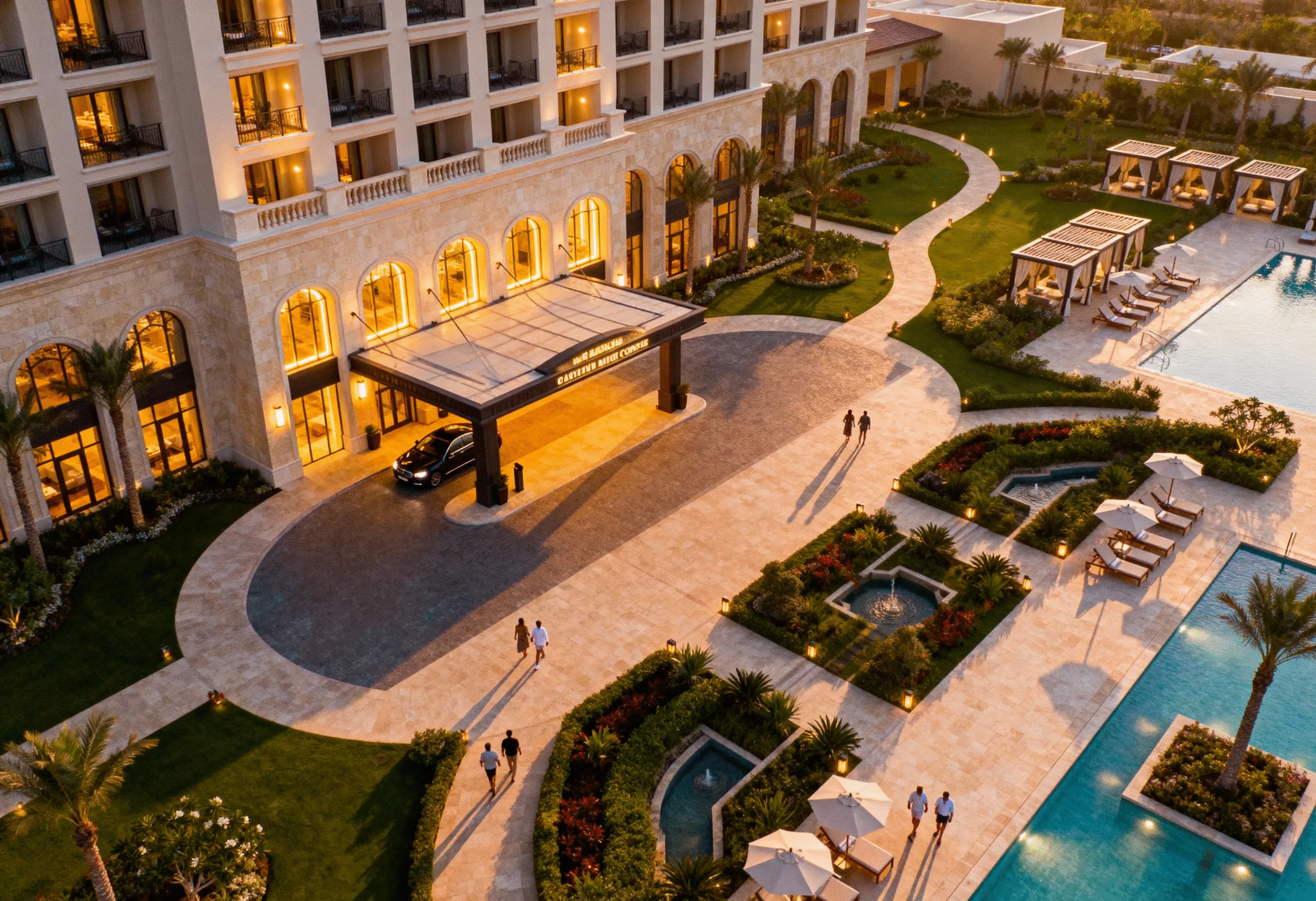

Seamless lighting experience for guests in hallways, lobbies, and service areas with intelligent automation.
Motion detection ensures well-lit zones only when needed, cutting power consumption in unused zones.
Reliable emergency lighting for underground and multi-level parking facilities, ensuring safety in low-light conditions.
Experience intuitive control with Triggo's advanced features designed for modern living
The hold time is set to 30 seconds, and the Lux level is set to 300. The light turns on when movement is detected and turns off after people leave, specifically at night. Applications include corridors and staircases.
With sufficient daylight (>300 Lux), the light remains off even when motion is detected.
With insufficient daylight (<300 Lux), the light turns on when motion is detected.
After the last detection and the elapse of the current hold time (30 seconds), the light turns off.
The daylight threshold is set to 2000 lux to disable the light. It turns on when movement is detected, and after people leave, the light turns off once the hold time of 30 seconds has elapsed. Applications include dimly lit areas such as basement parking and underpasses.
When motion is detected, the sensor will switch the light on to 100% brightness.
After people leave the detection area, the light remains at 100% brightness for the duration of the hold time.
After the last detection and the elapse of the current hold time (30 seconds), the light turns off.
Automatically adjusts between day and night modes based on ambient light levels, ensuring optimal performance in any lighting condition.
Fine-tune sensitivity from 0.1 m to 3m to perfectly match your space requirements and prevent false triggers.
The sensor continuously checks proximity and keeps the output ON while the detection zone is occupied.
Customize the delay from 5 sec to 15 minutes after the last detected motion to suit your specific needs.
Find answers to common questions about Triggo

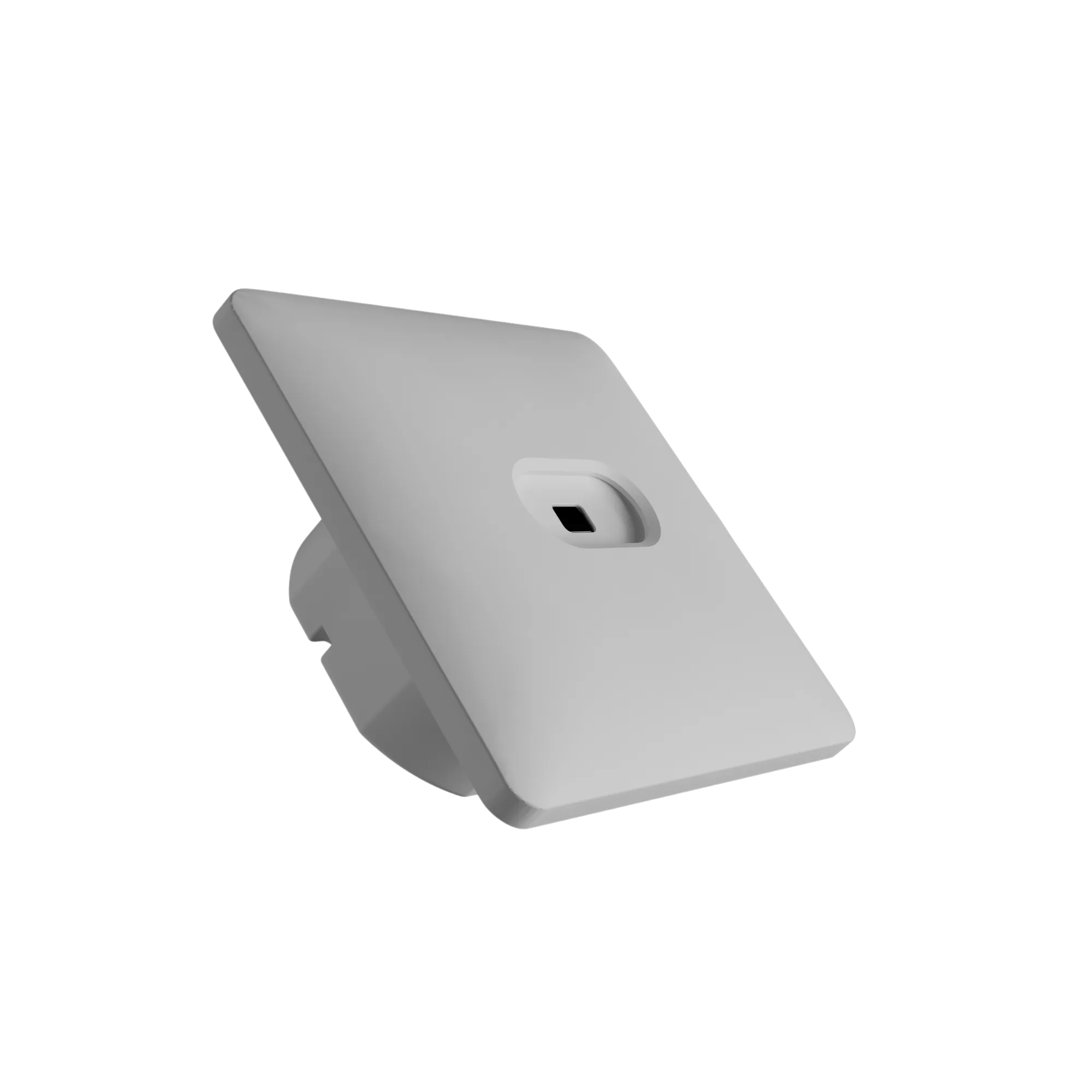

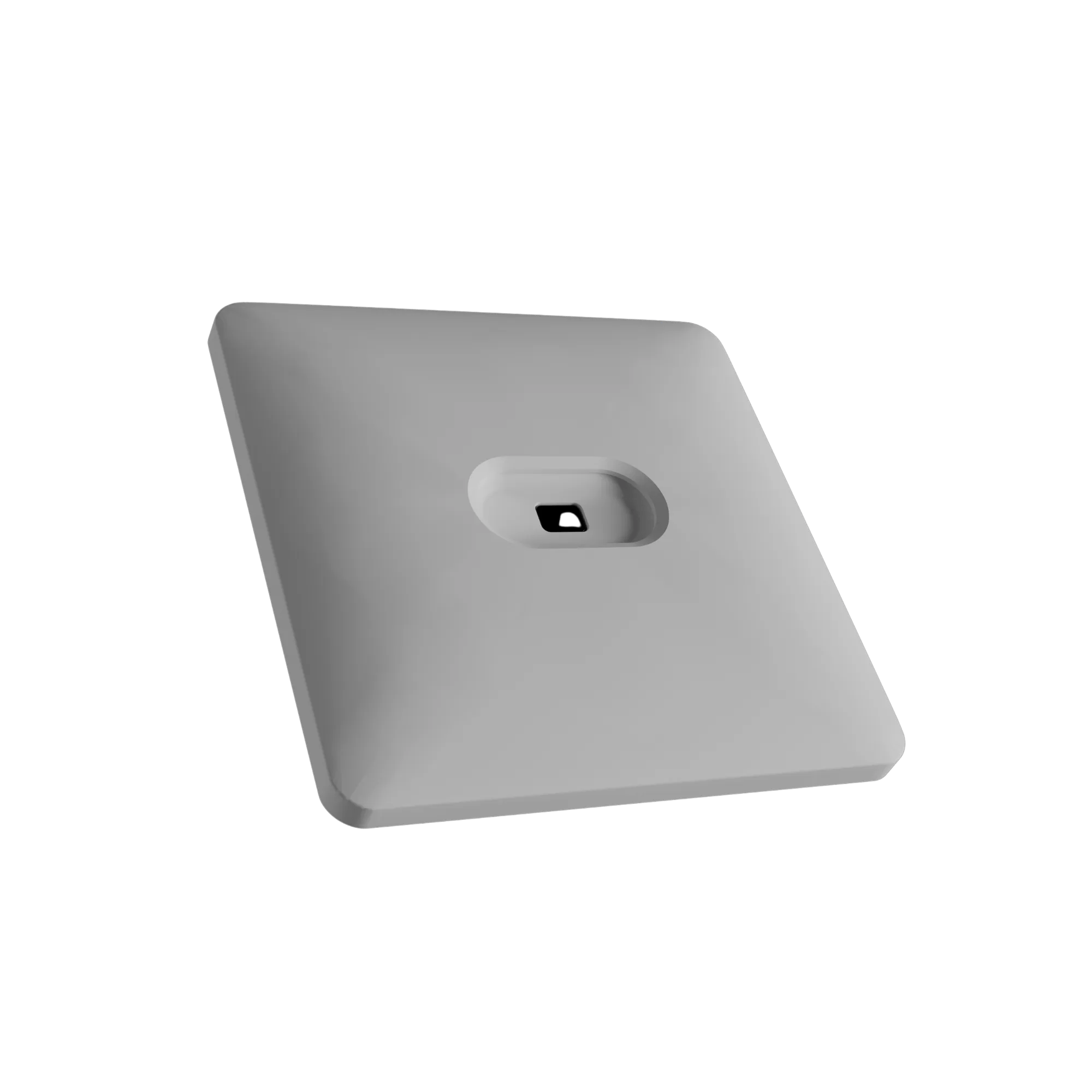

Triggo is India’s first proximity presence sensor using infrared laser technology for precise movement detection. It automatically turns lights ON with presence and OFF after delay, ensuring accuracy and energy efficiency.
It offers an adjustable range from 0.1 m to 3 m with a 15° precision beam for accurate sensing.

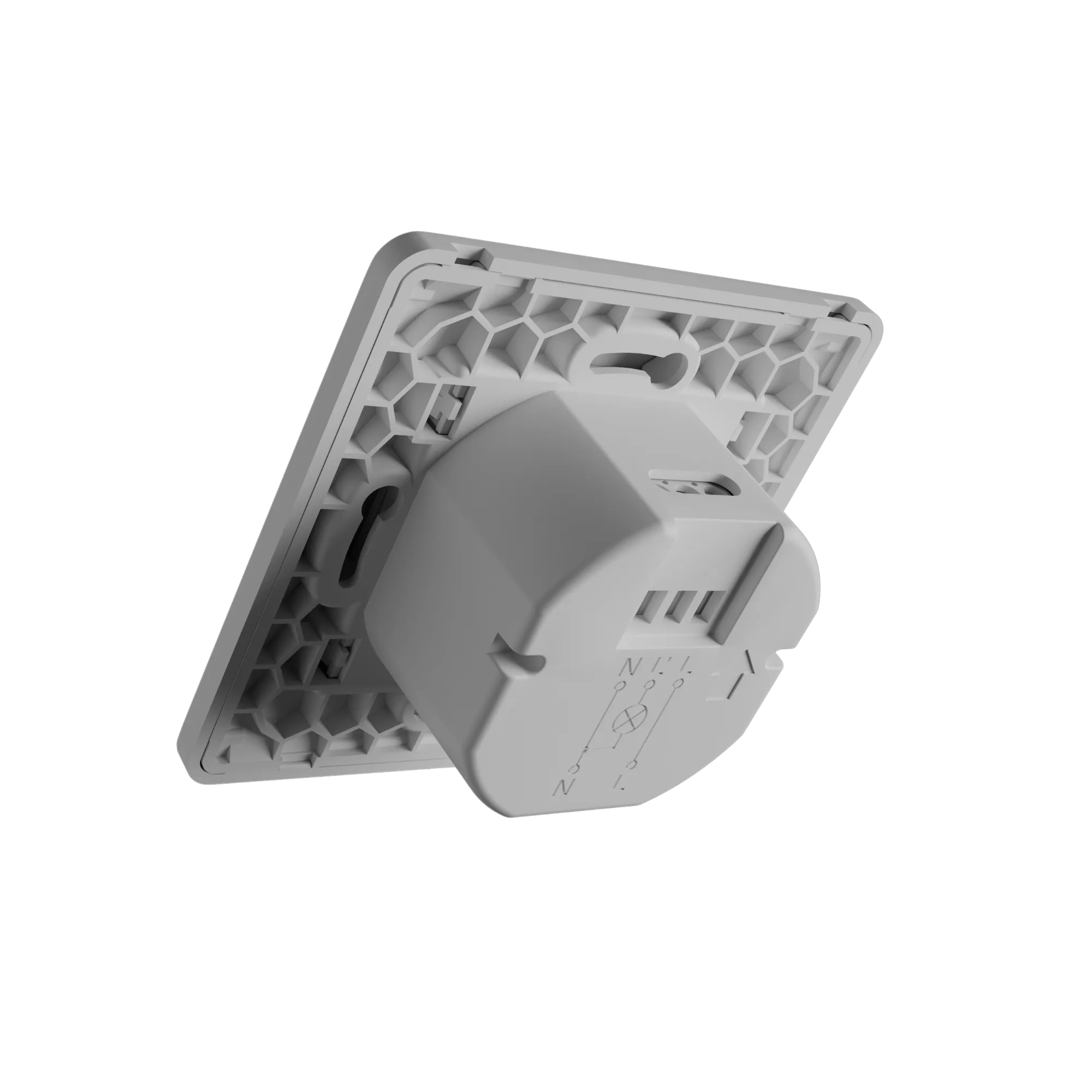

Yes, it supports both circular and square cutouts for wall or ceiling installation.
Yes. Triggo includes three adjustable controls for customized performance: Sensitivity (SENS): 0.1 – 3 m range, Time Delay (TIME): 5 seconds – 15 minutes, Light Control (LUX): 3 – 2000 LUX day/night setting

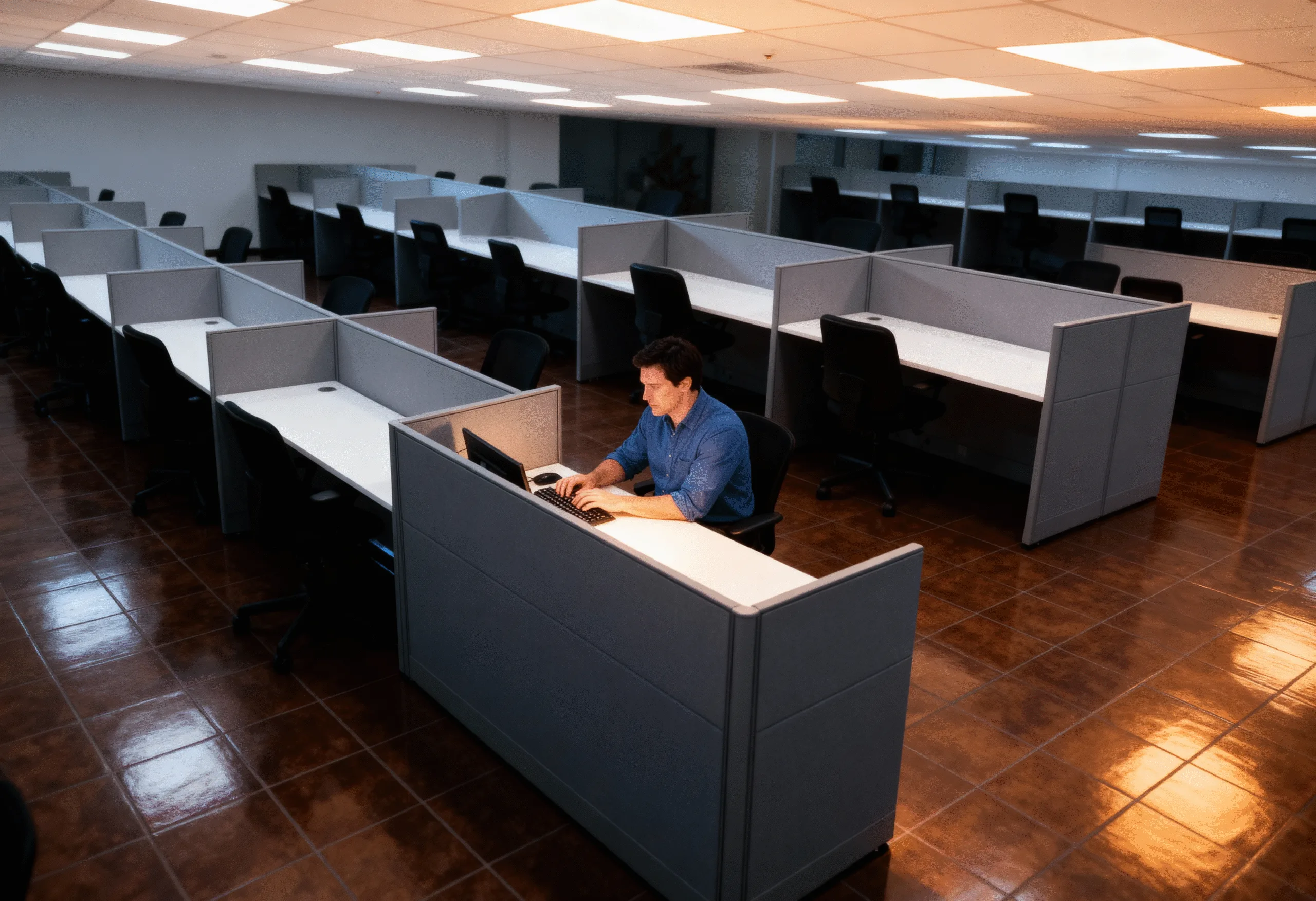

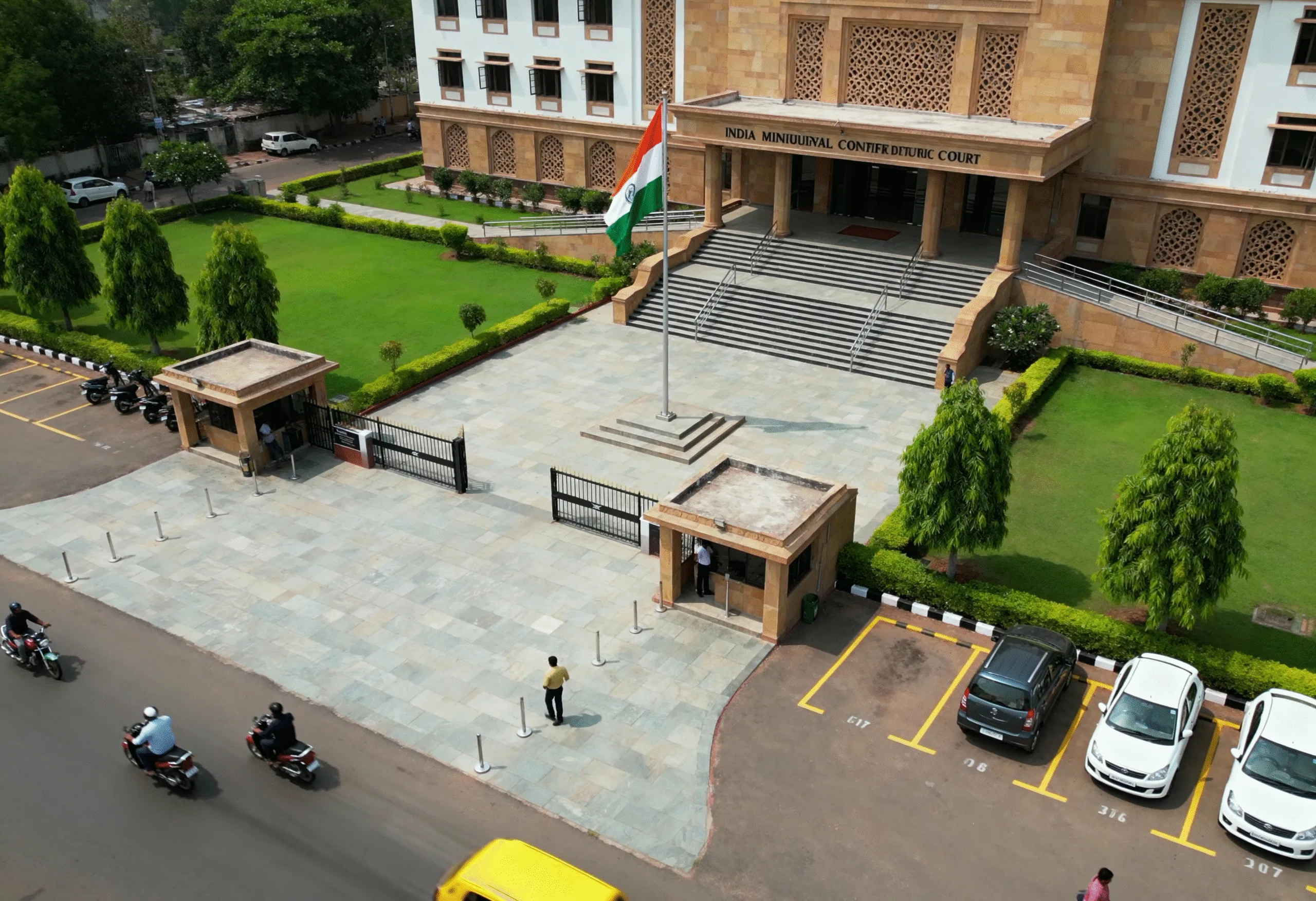

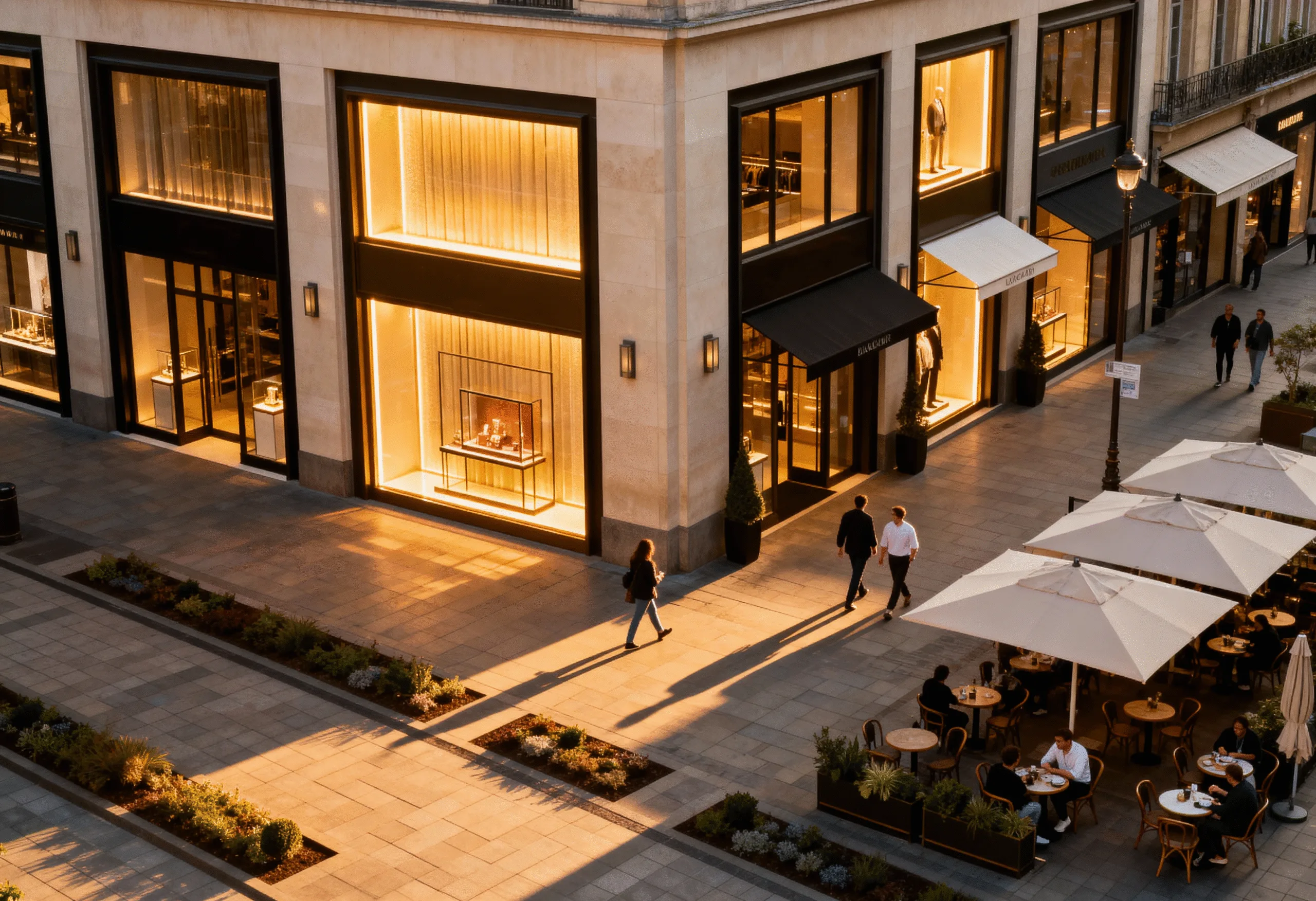

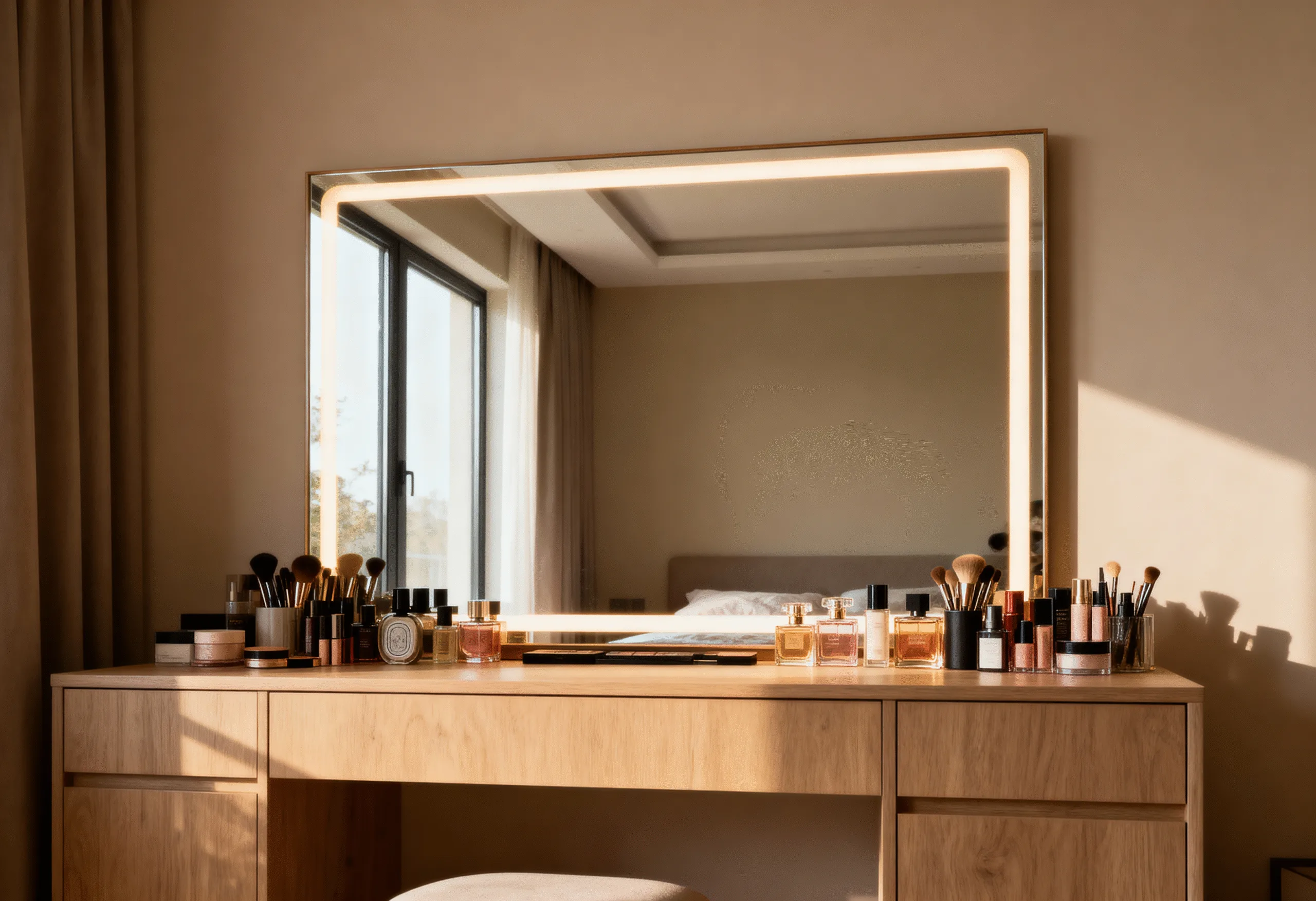

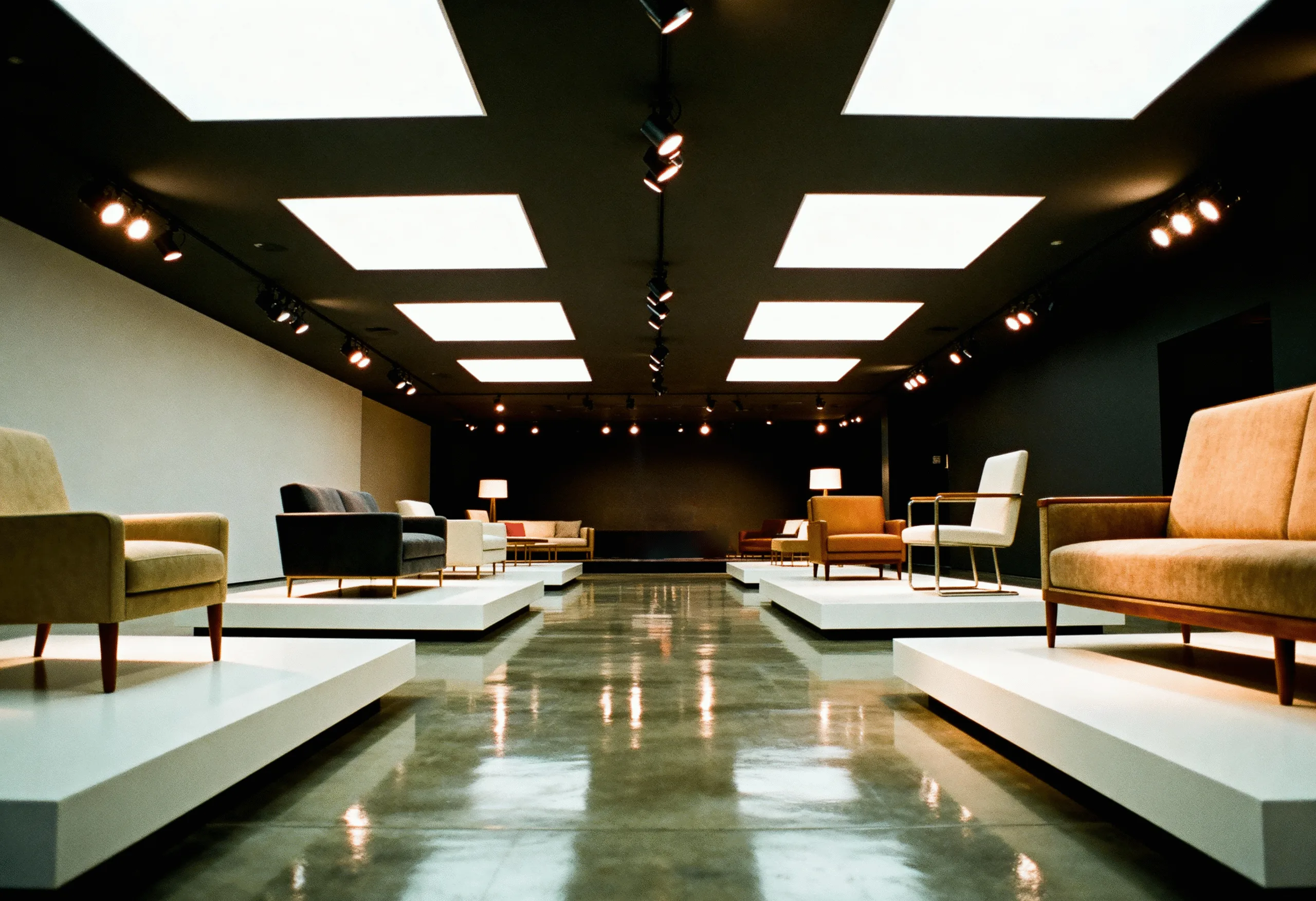

Triggo is ideal for precision-based indoor applications such as: Personal & Residential Spaces, Corporate & Commercial Workspaces, Retail & Display Environments, Hospitality & Guest Areas, Healthcare & Institutional Zones, Industrial & Utility Areas, Public, Government & Infrastructure Spaces, Furniture-Integrated & Architectural Installations
Yes. Triggo supports up to 2000 W (220–240 V AC) and works seamlessly with LED, CFL, and incandescent lights.
